Marine Stabilized Antenna System

Auto-Tracking Stabilized Antenna System is specifically used in the marine industry for offshore VSAT communication. Stabilized Antenna System allows the antenna to maintain an accurate pointing to the satellite regardless of the marine vessel's movement.

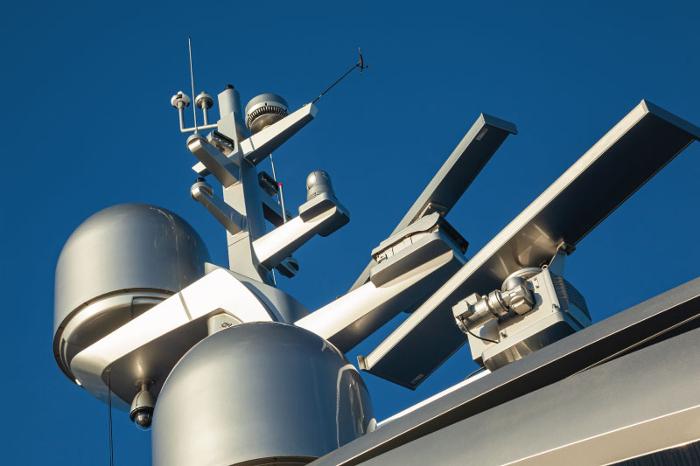

Stabilized Antenna System consists of the antenna (size ranging from 0.96 meters up to 2.4-meter equivalent) housed in a radome. The antenna is mounted on a 3-axis pedestal with high-torque motors that control the antenna movement. This allows unlimited 360° azimuth turning and a 0° to 90° elevation range. This movement is controlled by the Auto-Tracking Controller that gets vessel movement reading from the vessel onboard gyro-compass or external GPS compass system.

The system can compensate for vessel movement of up to +/- 20° roll and up to +/- 15° pitch. This translates to stabilization accuracy of less than 0.2° peak mispointing in full motion.

The stabilized antenna system can work with any of the VSAT solutions, in particular the SCPC network. This solution is being used widely on board sea vessels such as tankers, offshore FPSO (Floating Production, Storage, and Offloading Vessel), and semi-submersible drilling rigs, ships, and cruisers.

Applications

Dedicated services with improved facilities

Offshore Services

Semi-Submersibles, FPSO's

Flotels, Drill Ships, Naval Ships, and Ferry

64 kbps to 512 kbps

Automatic Satellite Acquisition
