Oil & Gas Solutions

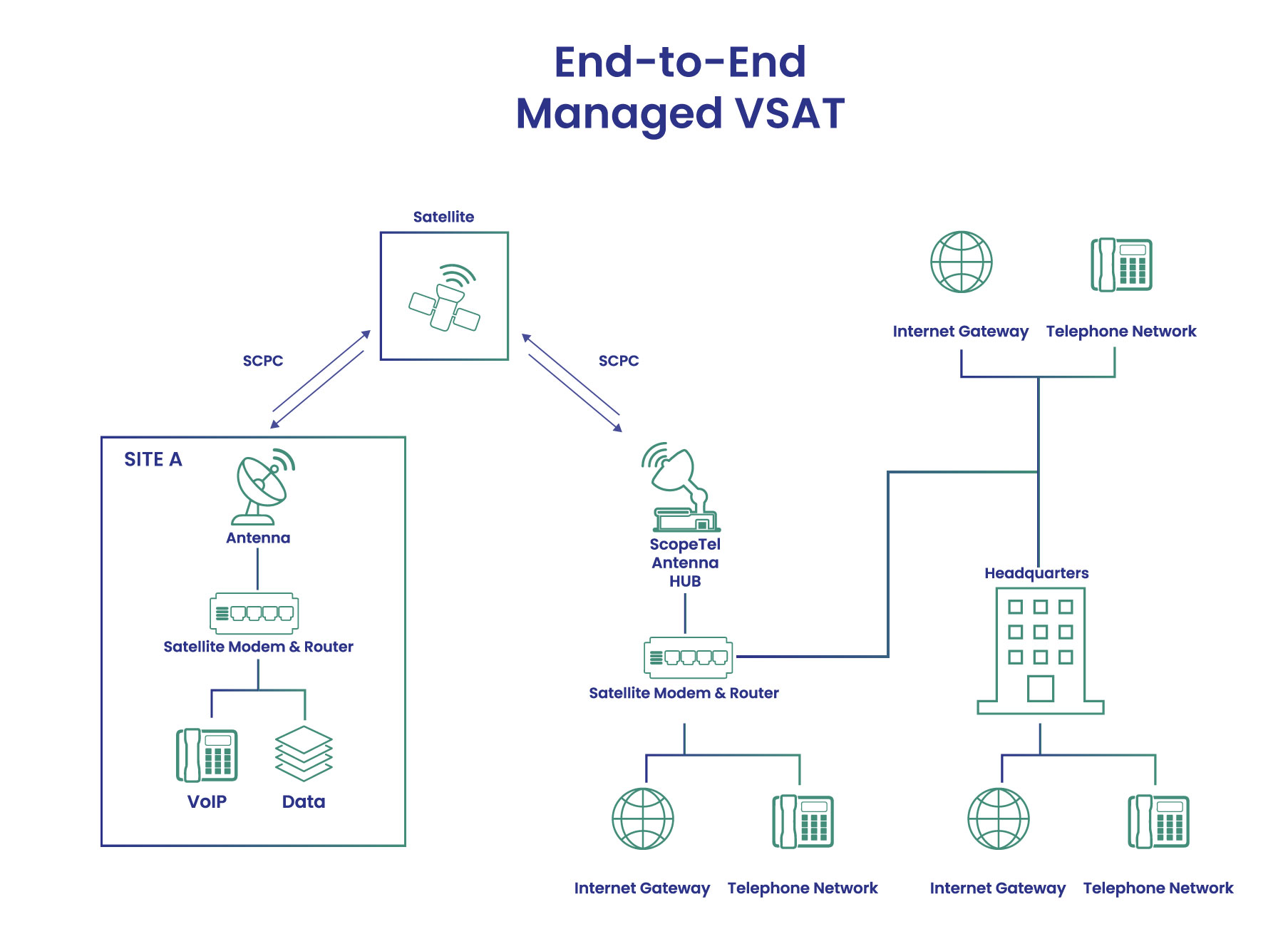

This satellite-based Single Channel Per Carrier (SCPC) technology uses a VSAT antenna and indoor unit to provide a reliable, two-way communications link anywhere under the satellite’s footprint.


Specifications


  • Satellite space segment
  • Ground Equipment includes VSAT antenna, RF ODU,  satellite modem, and cables
  • One-time VSAT installation and commissioning
  • Data rates support: 64Kbps up to 155 Mbps
  • Interface supported: V.35, G.703, RS-422, Ethernet, FE, HSSI, and ASI

Features:

Quick Implementation

Reliable, dedicated capacity with clear channel circuits.

Service Level Agreements (SLAs)

Offered for both hub and remote locations.

Web-based Online Access

Enables customers to monitor link utilization.

Both Symmetric and Asymmetric

Data rates are supported in 1Kbps increments.

Terrestrial Interconnection

With PCCW Global's optical fiber infrastructure (IMBS + MPLS + VPN).

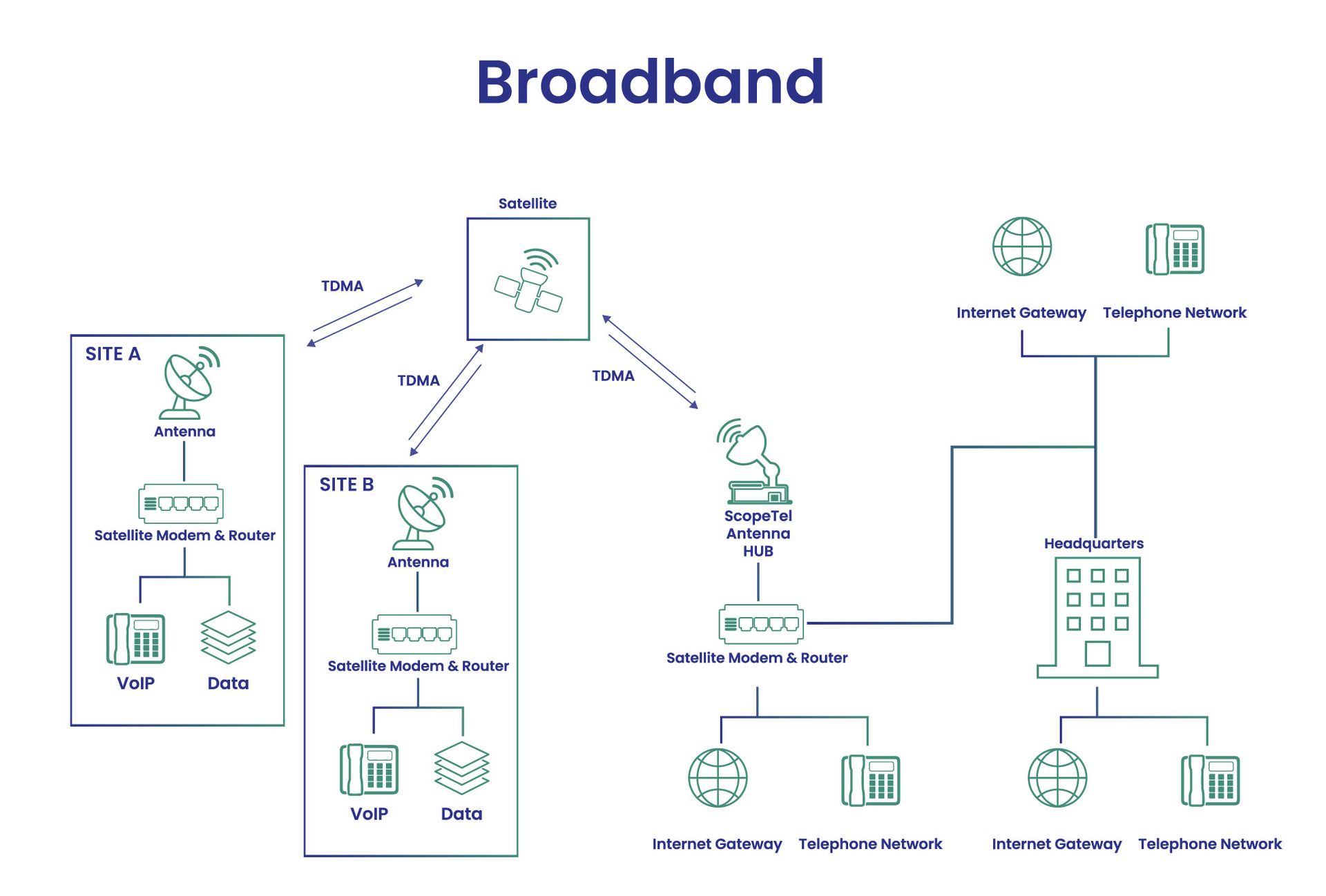

Broadband is the latest addition to ScopeTel's impressive array of VSAT technology solutions. Broadband is a low-cost, two-way, bandwidth-on-demand, broadband VSAT system for Internet Protocol (IP) connectivity over satellite based on TDMA (Time Division Multiple Access) technologies. TDMA technology allows bandwidth sharing and pooling, thus lowering the cost of this service, something similar to DSL technology.

The system uses iDirect highly successful Infinity broadband satellite solution. Operational from our Earth Station Hub and Network Control and Operation Center (NCOC) in Cyberjaya, this ‘star-topology’ architecture with a central earth station hub connected to thousands of remote sites. Each remote terminal is capable of an upload speed of up to 1.15 Mbps with a download speed of up to 10 Mbps.



Specifications


  • Antenna size: 0.75m to 2.4m
  • Typical information rates from 64Kbps to 11Mbps
  • C-band and Ku-band coverage
  • Flexible profiles with symmetric and asymmetric data rates on forward and return links
  • Real or private IP-address allocation
  • Quality shared bandwidth service with QoS control
  • Interface: Ethernet or Fast Ethernet

Features:


Broadband's main application offers broadband internet access via satellite with the earth station hub connected to a multi-megabit internet gateway. In addition, it can also support VPN, private corporate networks, and VoIP services. The SpaceLink Broadband system is enhanced with many features, such as:

Dynamic Bandwidth Allocation

And Bandwidth on Demand.

TCP/IP Routes and Protocol

Support is provided.

Slotted Aloha

For transaction-based low-bandwidth applications such as Point-of-Sales systems, Automated Teller Machines, or SCADA monitoring.

Configurable CIR (Committed Information Rate) and QoS (Quality of Service)

For guaranteed Grade of Service.

TCP Acceleration, TCP Spoofing, and Turbo Coding

Increase the system throughput for excellent IP connection over satellite VLAN Tagging, DHCP Relay, and MPLS support options.





Broadband is the latest addition to ScopeTel impressive array of VSAT technology solutions. Broadband is a low-cost, two-way, bandwidth-on-demand, broadband VSAT system for Internet Protocol (IP) connectivity over satellite based on TDMA (Time Division Multiple Access) technology. TDMA technology allows bandwidth sharing and pooling, and thus lowering the cost of this service, something similar to DSL technology.

The system uses iDirect highly successful Infinity broadband satellite solution. Operational from our Earth Station Hub and Network Control and Operation Center (NCOC) in Cyberjaya, this ‘star-topology’ architecture with a central earth station hub connected to thousands of remote sites. Each remote terminal is capable of upload speed up to 1.15 Mbps with download speed up 10 Mbps.


Specifications

  • Antenna size: 0.75m to 2.4m
  • Typical information rates from 64Kbps to 11Mbps
  • C-band and Ku-band coverage
  • Flexible profiles with symmetric and asymmetric data rates on forward and return links
  • Real or private IP-address allocation
  • Quality shared bandwidth service with QoS control
  • Interface: Ethernet or Fast Ethernet

Features

With the earth station hub connected to a multi-megabit internet gateway, Broadband's main application is to offer broadband internet access via satellite. In addition, it can also support VPN, private corporate networks, and VoIP services. The SpaceLink Broadband system is enhanced with many features such as:

  • Dynamic Bandwidth Allocation and Bandwidth on Demand

  • Configurable CIR (Committed Information Rate) and QoS (Quality of Service) for guaranteed Grade of Service

  • ​Support for various TCP/IP routes and protocol

  • TCP Acceleration, TCP Spoofing, and Turbo Coding increase the system throughput for excellent IP connection over satellite VLAN Tagging, DHCP Relay, and MPLS support options

  • Slotted Aloha for transaction-based low bandwidth applications such as Point-of-Sales systems, Automated Teller Machines or SCADA monitoring
